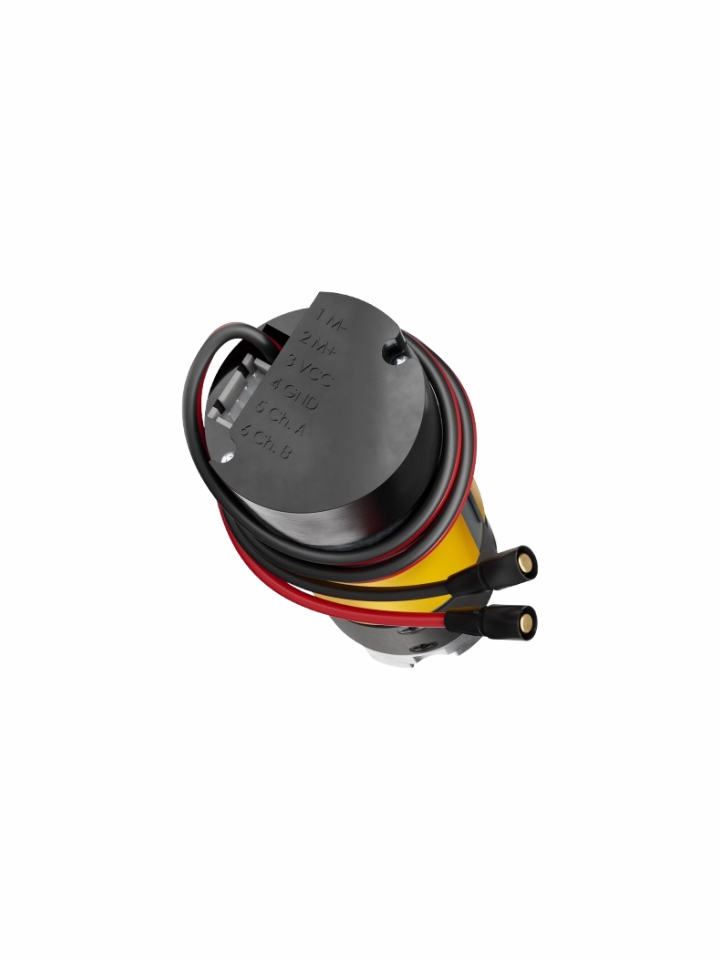

| Motor Size | RS-555 |
|---|---|
| Motor Type | Brushed DC |
| Nominal Voltage | 12VDC |
| Output Shaft | 8mm REX™, 24mm Length |
| Gearbox Style | Planetary |
| Gear Ratio | 13.7:1 |
| Gear Ratio Formula | (((1+(46/17))) * (1+(46/17))) |
| Gear Material | Steel |
| No-Load Speed @ 12VDC | 435 RPM |
| No-Load Current @12VDC | 0.25A |
| Stall Current @12VDC | 9.2A |
| Stall Torque @12VDC | 18.7 kg.cm (260 oz-in) |
| Wire Length | 470mm (including connectors) |
| Wire Gauge | 18AWG |
| Motor Connector Type | 3.5mm FH-MC Bullet Connectors |
| Encoder Connector Type | 4-Pos JST XH [FH-MC] |
| Encoder Type | Relative, Quadrature |
| Encoder Sensor Type | Magnetic (Hall Effect) |
| Encoder Voltage Range | 3.3 - 5VDC |
| Encoder Resolution | 384.5 PPR at the Output Shaft |
| Encoder Resolution Formula | ((((1+(46/17))) * (1+(46/17))) * 28) |
| Weight | 438g |
| IP | Patented |
